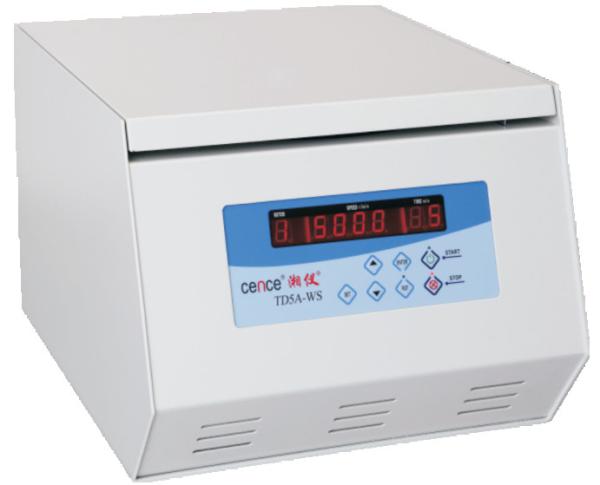

CENCE Special All Steel Enclosure Low Speed Classic Centrifuge TD5A-WS

Description:

TD5A-WS is a time-honored classic centrifuge developed by Cence, all steel housing and easy mode of operation shows the consistent quality, offering the rotor capacity up to 4x5000rpm, accommodating with multiple buckets and tube adapters

Features:

1.Multiple rotors,buckets and adapters are available for wide applications.

2.Microprocessor control, AC inverter motor with high torque without carbon powder emission.

3.Offers 9 Acc profiles and 10 Dec profiles preventing the sample from emulsion or turbid.

4.Accommodates the protection measures against over-speed or improper operation, including the function of fault automatic diagnosis, door lid self locking and stainless steel centrifuge chamber with double protection jackets etc. greatly improve the safety of centrifuge.

5.Programmable operation and the routine programs can be saved.

6.Speed ,time and RCF can be freely set.

Technical Parameters:

Model Name	TD5A-WS
Order No.	0205178000
Max speed	5000rpm
Max RCF	4390*g
Max Capacity	4*500ml
Speed Accuracy	±10r/min
Time Setting Range	1min to 99min
Temp Accuracy	±1ºC
Noise	<65dB(A)
Power Supply	AC220V±22V 50Hz /60Hz 10A
Wattage	750W
Dimension (W x D x H)	450x545x380(mm)
Package Dimension (W x D x H)	547x727x432(mm)
Weight	50kg

Rotor optional:

No.1	Order No. 0301808710 Max. Speed: 5000rpm Max.RCF: 3500xg Rotor capacity: 12x15ml
No.3 Order No. 0302853860 Max. Speed: 4000rpm Max.RCF: 2200xg	0303853810 Micro-plate bucket 2x2x96holes

Rotor	Cup	Adapter	Capacity (ml)	Place	Diameter mm	Depth (mm)	Order No
No.2 Swing Rotor Order No. 0302850110 Speed: 4000rpm RCF: 3040xg Capacity: 4x500ml	Test Cup 0303891022 Capacity: 4x500ml		300	4	Φ63	100	0304891142
			100	4	Φ38.5	107	0304891087
				8	Φ38.5	95	0304891009
			50	12	Φ29.5	72	0304891082
				16	Φ29.5	80	0304891007
			50 (conical)	16	Φ29.5	75	0304891008
			20	28	Φ21	72	0304851485
			15	36	Φ17	72	0304891083
			5	76	Φ14	72	0304851450
				80	Φ14	72	0304891010
	Carrier 0303851421 Capacity: 4x500ml		250	4	Φ63	95	0304891041
			50 Conical	16	Φ29.5	76	0304891075
				24	Φ29.5	76	0304891014
			50	16	Φ29.5	76	0304891107
				24	Φ29.5	74	0304891013
			15 Conical	40	Φ17	76	0304891074
				68	Φ17	76	0304891011
			15	40	Φ17	76	0304891104
			10	80	Φ16.5	76	0304891077
			5	112	Φ13.5	76	0304891081
			1.5	100	Φ11.2	76	0304891079
		Order No.0303851495 Capacity:4x2x96 places Elisa plate
		Order No.0303891011 Capacity:4x24x7/5ml Bucket

No.4 Order No.: 0302853590 Max. Speed: 5000rpm Max. RCF: 4390xg Max. Capacity: 4x100ml	Order No.:0303853850 Capacity:4x100ml	Adapter: 0304891064 Capacity: 4x50ml	Adapter: 0304891127 Capacity: 4x15ml conical
		Adapter: 0304891126 Capacity:4x50mlconical	Adaptor: 0304853510 Capacity:4x3x5ml vacuum
		Adapter: 0304891125 Capacity:4x30ml	Adaptor: 0304853511 Capacity:4x2x10ml
		Adapter: 0304853507 Capacity:4x20ml	Adaptor: 0304853512 4x4 hematocrit tube
		Adapter: 0304891128 Capacity:4x15ml	Adaptor: 0304853533 Capacity: 4x2x1.5ml

No.5 Swing Rotor 0302853590 Speed: 4200rpm RCF: 3100xg	Bucket Order No. 0303853545 Capacity: 4x2x100ml	Adapter: 0304891064 (4x2x50ml) 0304891127 (4x2x15ml conical) 0305891126 (4x2x50ml conical) 0304853510 (4x6x5ml Vacuum) 0305891125 (4x2x30ml)	0304853511 (4x4x10ml) 0304853507 (4x2x20ml) 0304853512 (4x8 hematocrit) 0304891128 (4x2x15ml) 0304853533 (4x4x1.5ml)
	Order No. 0303853560 Capacity: 4x8x15ml	Adapter: 0304853530(10ml) 0304853531(7ml) 0304853532(5ml)	Adapters can be customized
	Bucket Order No: 0303853540 Capacity: 4x2x50ml	Bracket Order No: 030389009 Adapter: 4x16x5ml/7ml	Bracket Order No: 0303891010 Adapter: 4x12x5ml/7m
